Eight core models, split on three axes: generation (5th or 4th — the difference is changeover time), throughput (under or over 70 kg/h), and dosing configuration (single powder, dual powder, or dual material). Fix those three and the model is decided. High-temperature resins do not need a separate machine — the same model takes a high-temp configuration, suffix -S, shown in the full range table below.

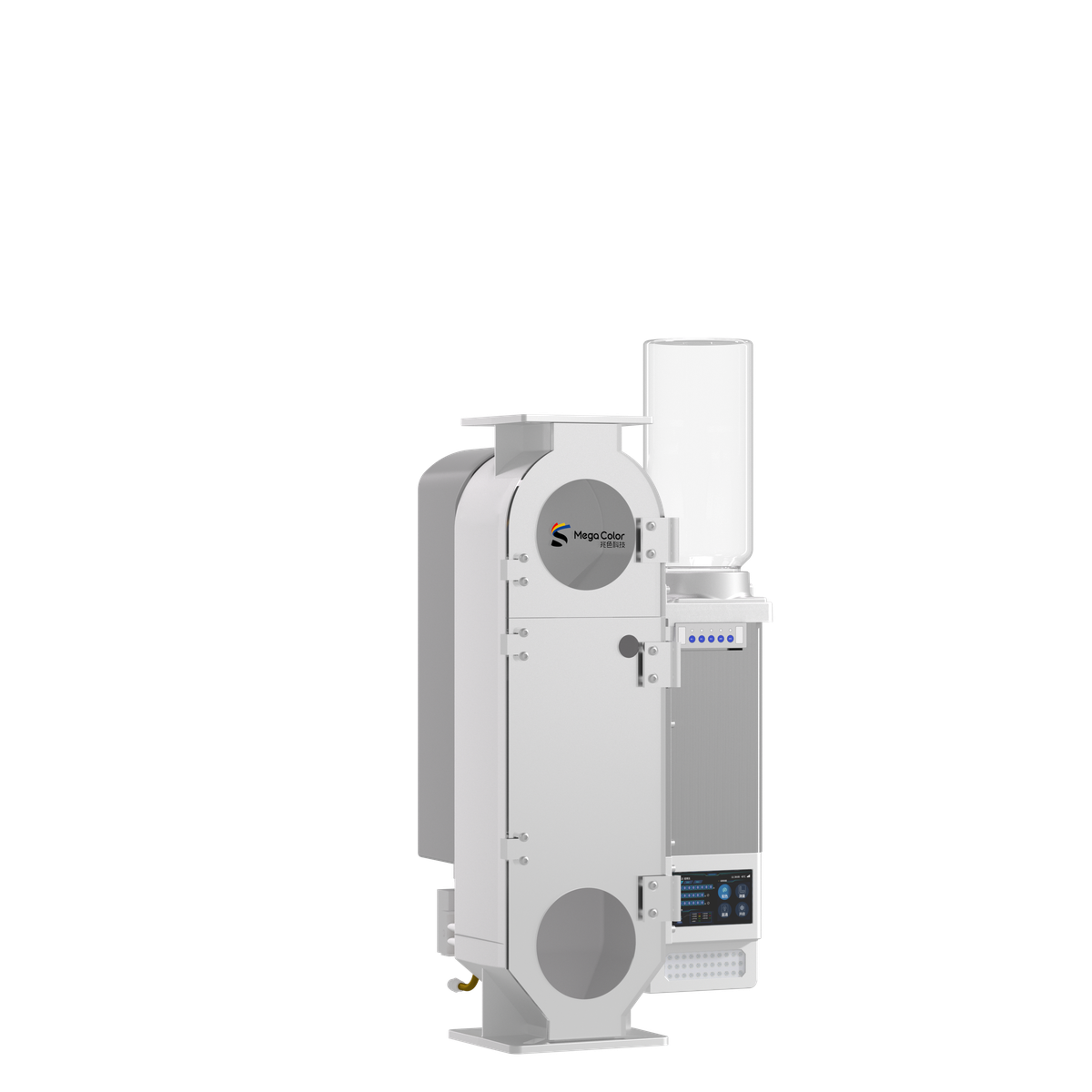

5th Generation · Standard
Low-temp resins · 50–70 kg/h · Single powder

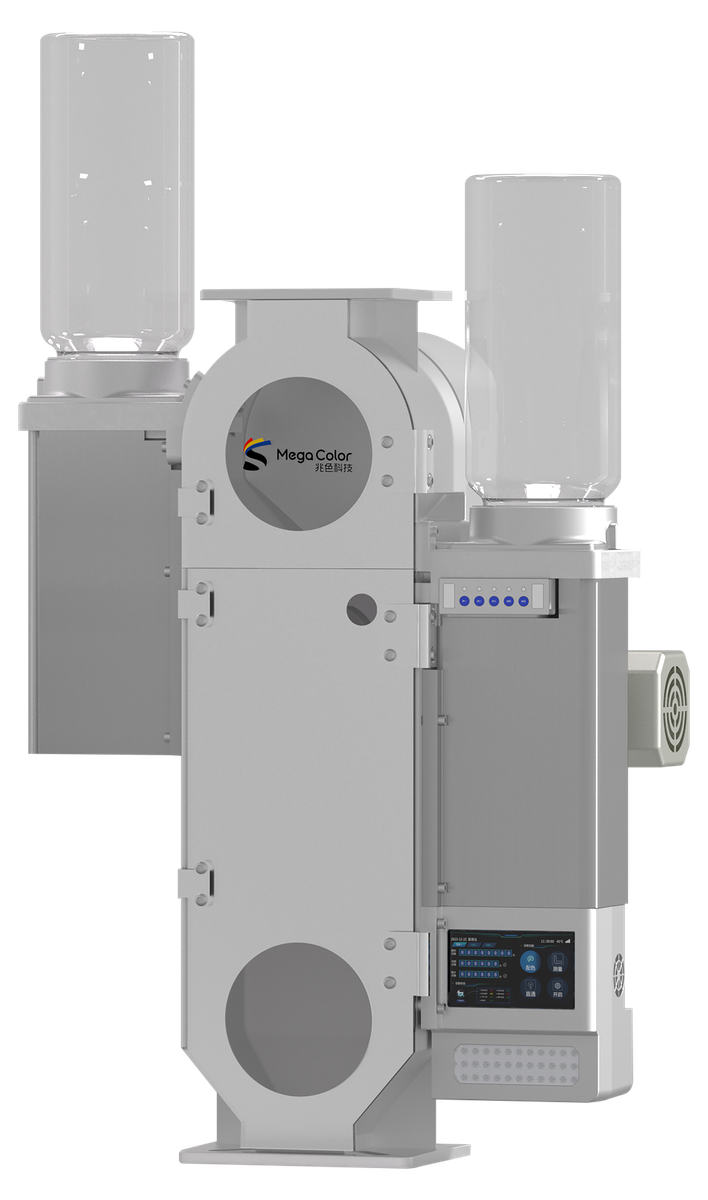

5th Generation · Dual Powder
Low-temp resins · 50–70 kg/h · Dual powder

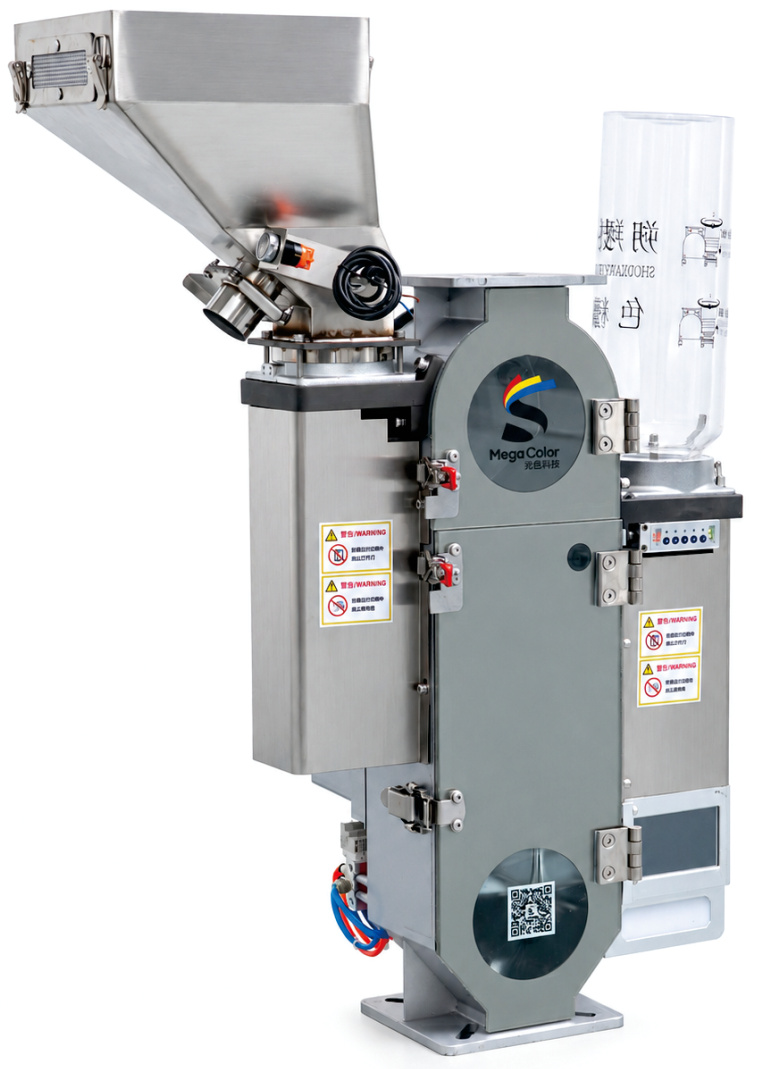

5th Generation · Dual Material
Low-temp resins · 50–70 kg/h · Two materials standard (expandable to 4 with add-on modules)
4th Generation · Standard
Low-temp resins · 50–70 kg/h · Single powder + regrind
4th Generation · Dual Powder
Low-temp resins · 50–70 kg/h · Dual powder + regrind

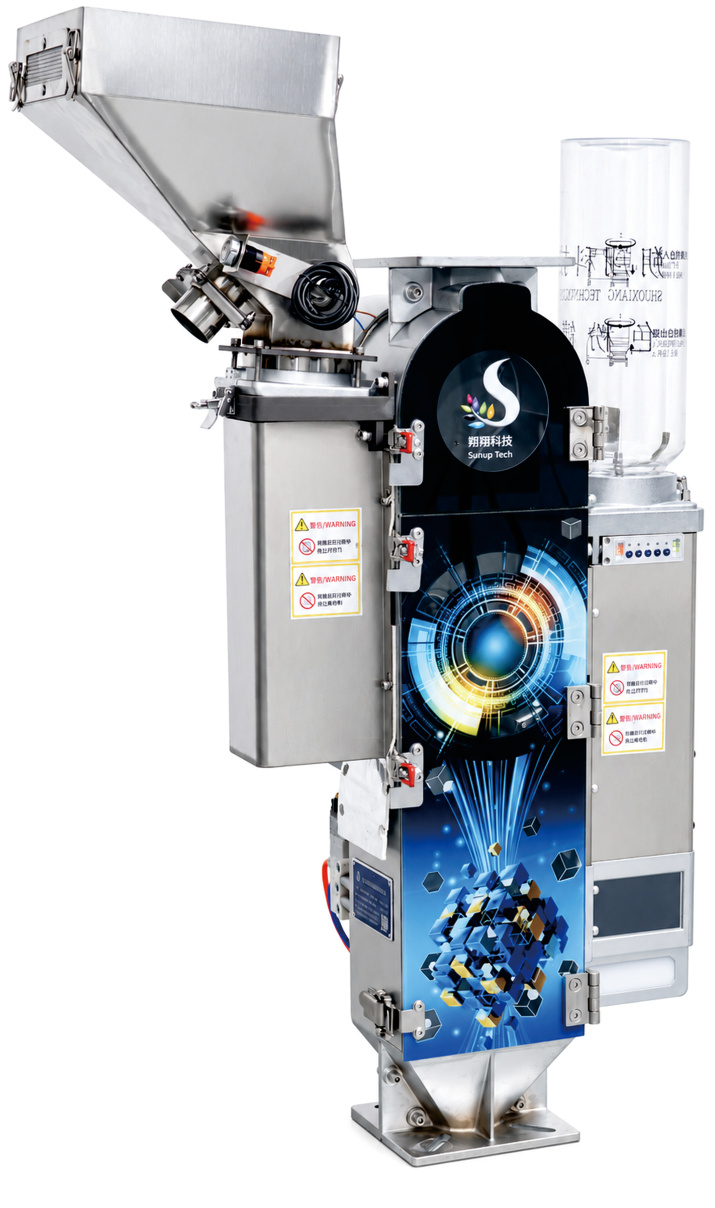

4th Generation · Dual Material
Low-temp resins · 50–70 kg/h · Two materials standard (expandable to 4 with add-on modules)

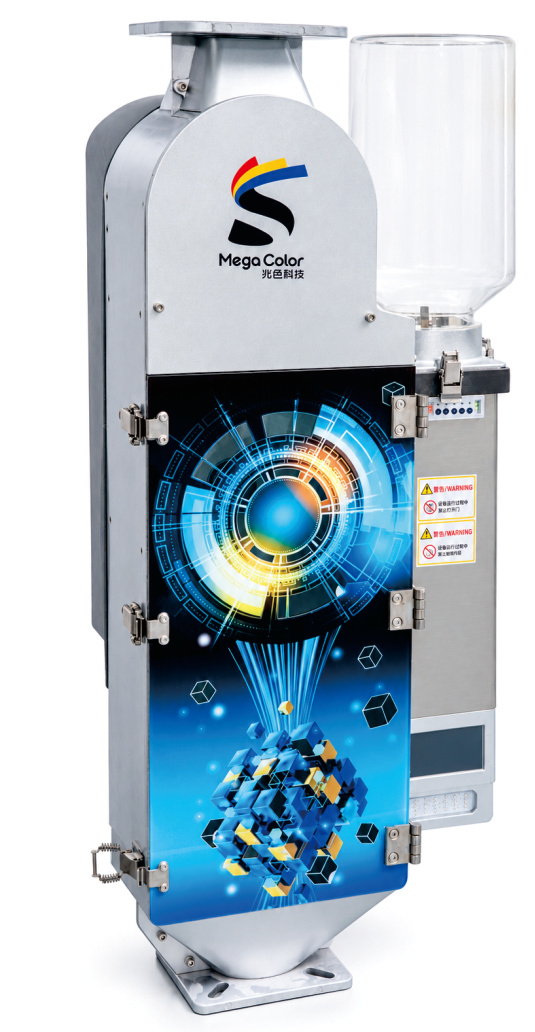

Large Capacity · Standard
Low-temp resins · 150–180 kg/h · Single powder

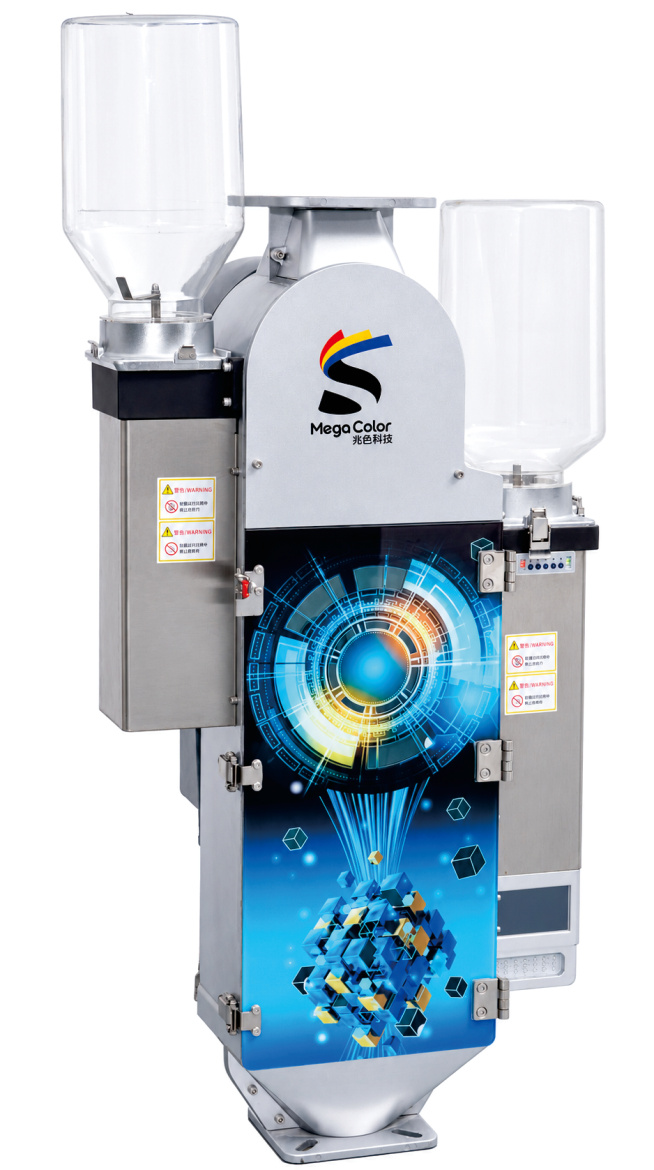

Large Capacity · Dual Powder
Low-temp resins · 150–180 kg/h · Dual powder
Dual-powder and dual-material are not the same machine. On the dual-powder model both tanks hold powder (color powder with metallic pigment, color powder with mould release). The dual-material model handles multiple resin streams (resin with calcium carbonate, for example), for cases where the bulk densities differ too much to blend evenly in a tumble mixer and the heavy fraction settles out as soon as the hopper vibrates. The wrong machine will not fix the problem once it is installed.
Every difference across the eight models in one table.
| Model | Generation | Throughput | Dosing | Changeover | Tank volume |
|---|---|---|---|---|---|
| 5th Gen Standard | 5th Generation · Standard | 50–70 kg/h | Single powder | 1-minute hopper swap; full purge under 5 minutes | 4.6 L |
| 5th Gen Dual-Powder | 5th Generation · Dual Powder | 50–70 kg/h | Dual powder | 1-minute hopper swap; full purge under 5 minutes | 4.6 L |
| 5th Gen Dual-Material | 5th Generation · Dual Material | 50–70 kg/h | Two materials standard (expandable to 4 with add-on modules) | 1-minute hopper swap; full purge under 5 minutes | 4.6 L |
| 4th Gen Standard | 4th Generation · Standard | 50–70 kg/h | Single powder + regrind | 10 minutes (4th Generation level) | 4.6 L |
| 4th Gen Dual-Powder | 4th Generation · Dual Powder | 50–70 kg/h | Dual powder + regrind | 10 minutes (4th Generation level) | 4.6 L |
| 4th Gen Dual-Material | 4th Generation · Dual Material | 50–70 kg/h | Two materials standard (expandable to 4 with add-on modules) | 10 minutes (4th Generation level) | 4.6 L |
| Large-Capacity Standard | Large Capacity · Standard | 150–180 kg/h | Single powder | 10 minutes (4th Generation level) | 10.5 L |
| Large-Capacity Dual-Powder | Large Capacity · Dual Powder | 150–180 kg/h | Dual powder | 10 minutes (4th Generation level) | 10.5 L |
The eight models above are the core range and each has its own page. Below is every orderable configuration. On the same generation and frame, the high-temp, oil-spray, regrind, dual-material and dual-powder options can be combined, and each combination has its own model code. Orders are placed against the code.
| Configuration | Model code | Dimensions (L×W×H, mm) | Power | Weight |
|---|---|---|---|---|
| 4th Gen Large-Capacity | icolor4 L | 541*432*1150 | 430W | 66kg |
| 4th Gen Large-Capacity High-Temp | icolor4 L-S | — | — | — |
| 4th Gen Large-Capacity Oil-Spray | icolor4 L-U | — | — | — |
| 4th Gen Large-Capacity High-Temp Oil-Spray | icolor4 L-SU | — | — | — |
| 4th Gen Large-Capacity Dual-Material | icolor4 L-D | 640*502*1150 | 490W | 79kg |
| 4th Gen Large-Capacity High-Temp Dual-Material | icolor4 L-SD | — | — | — |
| 4th Gen Large-Capacity Dual-Powder | icolor4 L-F | — | — | — |
| 4th Gen Large-Capacity High-Temp Dual-Powder | icolor4 L-SF | — | — | — |
| 4th Gen Standard | icolor4 M | 400*320*840 | 220W | 36kg |
| 4th Gen Standard High-Temp | icolor4 M-S | — | — | — |
| 4th Gen Standard Oil-Spray | icolor4 M-U | — | — | — |
| 4th Gen Standard High-Temp Oil-Spray | icolor4 M-SU | — | — | — |
| 4th Gen Standard Regrind | icolor4 M-T | — | — | — |
| 4th Gen Standard High-Temp Regrind | icolor4 M-ST | — | — | — |
| 4th Gen Standard Dual-Material | icolor4 M-D | 540*390*840 | 260W | 43kg |
| 4th Gen Standard High-Temp Dual-Material | icolor4 M-SD | — | — | — |
| 4th Gen Standard Dual-Powder | icolor4 M-F | — | — | — |
| 4th Gen Standard High-Temp Dual-Powder | icolor4 M-SF | — | — | — |
| 5th Gen Standard | IcoLor5 M | 400*320*684 | 240W | 32kg |
| 5th Gen Standard Oil-Spray | IcoLor5 M-U | 400*320*684 | 240W | 32kg |
| 5th Gen Standard Dual-Material | IcoLor5 M-D | 540*390*684 | 280W | 37kg |
| 5th Gen Standard Regrind | IcoLor5 M-T | 540*390*684 | 280W | 37kg |
| 5th Gen Standard Dual-Powder | IcoLor5 M-F | 540*390*684 | 280W | 37kg |
| 5th Gen Standard High-Temp | IcoLor5 M-S | 400*320*684 | 240W | 32kg |
| 5th Gen Standard High-Temp Oil-Spray | IcoLor5 M-SU | 400*320*684 | 240W | 32kg |
| 5th Gen Standard High-Temp Dual-Material | IcoLor5 M-SD | 540*390*684 | 280W | 37kg |
| 5th Gen Standard High-Temp Regrind | IcoLor5 M-ST | 540*390*684 | 280W | 37kg |
| 5th Gen Standard High-Temp Dual-Powder | IcoLor5 M-SF | 540*390*684 | 280W | 37kg |
| 5th Gen Standard High-Temp Dual-Material Regrind | IcoLor5 M-SDT | 540*390*684 | 280W | 37kg |
| 5th Gen Standard Dual-Material Regrind | IcoLor5 M-DT | 540*390*684 | 280W | 37kg |
| 5th Gen Standard High-Temp Dual-Material Oil-Spray | IcoLor5 M-SDU | 540*390*684 | 280W | 37kg |
Code suffixes: S high-temp · U oil-spray · T regrind · D dual-material · F dual-powder · L large-capacity · M standard. A model with no High-Temp in its name is the standard temperature grade. Where dimensions, power or weight show “—”, that configuration shares the base model’s figures and the register does not list it separately — tell us which configuration you need and we will issue a datasheet for it. High-temp and standard-temp units look identical; the difference is in the heat-resistant construction, not the housing.
Three things decide the model: melt temperature, usage rate, and the type of powder you run. If you are unsure, send us the resin and color powder you use and we will test on your actual materials.
Downloads: product brochure (PDF), operating manual, installation drawings to be uploaded
